Foundation issue - rainfall
- DeltaCotton12
- Duck South Addict
- Posts: 3644
- Joined: Fri Nov 10, 2006 7:39 pm
Foundation issue - rainfall
I had my foundation worked on middle summer. They jacked the house about an inch and a half. Because of the drought, my house is now dropped by about an inch and a half. I was thinking that as the ground water increased, my house may move back up as the mud swells. Any truth to my thinking?
-
- Duck South Addict
- Posts: 3605
- Joined: Sun Oct 26, 2008 8:59 pm
- Location: Hernando-Gwood-Nola
Re: Foundation issue - rainfall
How did they jack it.............screws/augers or did they jack against hard ground and pour concrete?
It depends upon what they jacked against and what depth it is located below foundation.
Its hard to really say.................it depends on a few variables.
If your still settling, you may have different issues.
Yazoo clay is a mutha!!!
It depends upon what they jacked against and what depth it is located below foundation.
Its hard to really say.................it depends on a few variables.
If your still settling, you may have different issues.
Yazoo clay is a mutha!!!
"You didn't happen to find that on the side of the road did you?"- One Shot
- DeltaCotton12
- Duck South Addict
- Posts: 3644
- Joined: Fri Nov 10, 2006 7:39 pm
Re: Foundation issue - rainfall
Jacked might of been a bad choice of words. The previous homeowners bought a lifetime transferable warranty on 10 pilings around the back of the property. Only 3 have moved (significantly) in the 6 years the pilings have been there. 3 pilings were worked adjusted in the summer.
-
- Duck South Addict
- Posts: 3605
- Joined: Sun Oct 26, 2008 8:59 pm
- Location: Hernando-Gwood-Nola
Re: Foundation issue - rainfall
So, you have 10 pilings and 3 of those were adjust by shimming a 1.5" gap that developed since original piles were installed.DeltaCotton12 wrote:Jacked might of been a bad choice of words. The previous homeowners bought a lifetime transferable warranty on 10 pilings around the back of the property. Only 3 have moved (significantly) in the 6 years the pilings have been there. 3 pilings were worked adjusted in the summer.
The piles were put on 1, 2,3, or 4 sides? Which 3 were adjusted??? alond 1 or 2 walls or close to 1 corner???
"You didn't happen to find that on the side of the road did you?"- One Shot
- waterfowlwidowmaker
- Duck South Addict
- Posts: 1172
- Joined: Fri Nov 01, 2002 3:17 pm
- Location: Ridgeland, Ms
Re: Foundation issue - rainfall
I'm going to assume you probably have Structural Solutions or Olshan piles under your home. It sounds to me like you have a shallow pile system that is terminated within the zone of influence, hence the reason it is still moving. Those companies and the other ones like them cannot push the piles deep enough to get below the zone of influence and you will still get some movement in very dry or very wet conditions.
Once the soils heave your house will probably move back up to some degree however overall settlement will continue to occur in the long run.
Once the soils heave your house will probably move back up to some degree however overall settlement will continue to occur in the long run.
-
- Duck South Addict
- Posts: 3605
- Joined: Sun Oct 26, 2008 8:59 pm
- Location: Hernando-Gwood-Nola
Re: Foundation issue - rainfall
waterfowlwidowmaker wrote:I'm going to assume you probably have Structural Solutions or Olshan piles under your home. It sounds to me like you have a shallow pile system that is terminated within the zone of influence, hence the reason it is still moving. Those companies and the other ones like them cannot push the piles deep enough to get below the zone of influence and you will still get some movement in very dry or very wet conditions.
Once the soils heave your house will probably move back up to some degree however overall settlement will continue to occur in the long run.
Sounds like his dilema.
"You didn't happen to find that on the side of the road did you?"- One Shot
Re: Foundation issue - rainfall
Both of the above posts are very good info. Since you have the warranty I might consider getting someone (engineer) besides the foundation company to look at it. You would need to have a description of exactly what was originally done. I have several rental properties in the Clinton area and I have spent 10's of thousands of $$$ on foundations on these properties. It is definitely not "ONE SIZE FITS ALL" As novocaine says "YAZOO CLAY IS A MUTHA." Get a second opinion. A few hundred now for an engineer may save you a bundle down the road.
- DeltaCotton12
- Duck South Addict
- Posts: 3644
- Joined: Fri Nov 10, 2006 7:39 pm
Re: Foundation issue - rainfall
Structural Solutions is the company that did the original work. They also came out and did the adjustments.
As far as the engineer, what exactly would he be able to tell me regarding the current installed pilings?

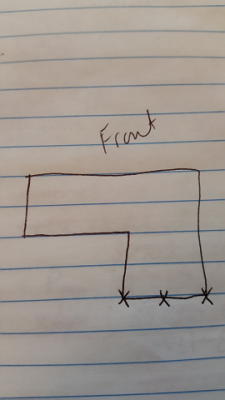

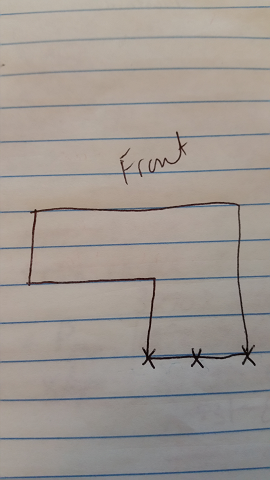

Another poster asked where the pilings were, I've attached a picture to show this. It is the back of the house that is pulling away from the house like a hinge.
As far as the engineer, what exactly would he be able to tell me regarding the current installed pilings?
Another poster asked where the pilings were, I've attached a picture to show this. It is the back of the house that is pulling away from the house like a hinge.
-
- Duck South Addict
- Posts: 3605
- Joined: Sun Oct 26, 2008 8:59 pm
- Location: Hernando-Gwood-Nola
Re: Foundation issue - rainfall
So the 3 on the back of the house are still moving i take it. The rest of the pilings are currently holding........
You see that often in the rolling hills over yazoo clay down around Madison/Jackson area. Contractors clip the tops of the hills and push the dirt on the slopes to level an area to build a house. One part of the foundation settles (or heaves) at a different rate than the other.
So many unknowns and questions but a few things for you to ponder:
Is one side dryer or wetter than the other........on a consistent basis. I mean is drainage/gutters/landscaping/irrigation consistent all the way around the house?
You can build on that goose snot yazoo clay but you must be consistent with the ground moisture conditions.
You can keep it all wet or dry but you CAN NOT allow drastic ground moisture changes on that crap.
A long time ago a wise old soil and foundation professor told me that you can launch an apollo rocket with a 5 gallon bucket of dry yazoo clay and 5 gallons of water.
You see that often in the rolling hills over yazoo clay down around Madison/Jackson area. Contractors clip the tops of the hills and push the dirt on the slopes to level an area to build a house. One part of the foundation settles (or heaves) at a different rate than the other.
So many unknowns and questions but a few things for you to ponder:
Is one side dryer or wetter than the other........on a consistent basis. I mean is drainage/gutters/landscaping/irrigation consistent all the way around the house?
You can build on that goose snot yazoo clay but you must be consistent with the ground moisture conditions.
You can keep it all wet or dry but you CAN NOT allow drastic ground moisture changes on that crap.
A long time ago a wise old soil and foundation professor told me that you can launch an apollo rocket with a 5 gallon bucket of dry yazoo clay and 5 gallons of water.
"You didn't happen to find that on the side of the road did you?"- One Shot
